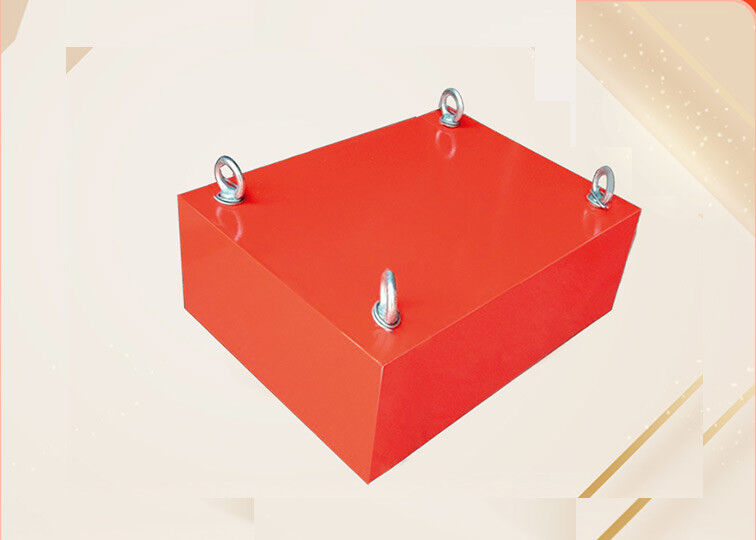

Suspended Permanent Magnet Iron Remover with No Power Required Ultra-Strong Magnetic Field and Stable Performance

Product Title

Core Advantages

1. No Power Required, Energy-Saving & Cost-Effective




   Working entirely on the magnetic field of high-performance permanent magnets, it requires no external power supply, eliminating operating costs and the risk of failure during power outages. It provides consistent performance with zero energy consumption.


2. Ultra-Strong Magnetic Field for High Removal Efficiency




   Built with rare-earth NdFeB magnets, it delivers a magnetic field strength of 6,000–16,000 Gauss, effectively capturing even fine ferrous particles. It is ideal for industries like lithium battery materials, mining, food processing, and chemicals, ensuring high material purity.


3. Stable Performance with a Long Service Life




   The magnets have extremely low demagnetization rates: ≤5% in 3 years and ≤3% over 10 years. The magnetic field remains constant with no difference between cold and hot states. Its robust, hermetically sealed design withstands harsh environments, including dust, moisture, and high temperatures up to 350°C.


4. Low Maintenance & High Adaptability




   Featuring a simple, wear-resistant structure, it minimizes maintenance costs and downtime. It supports both local manual and centralized control, can be interlocked with conveyor belts, and is adaptable to various installation points, with custom designs available for special conditions.



Applications

• Lithium Battery Materials: Lithium carbonate, lithium hydroxide, lithium iron phosphate, and ternary precursors.
• Mining & Metallurgy: Coal and ore processing lines.
• Chemical & Ceramics: Purification of chemical raw materials and ceramic powders.
• Food & Plastics: De-ironing of food ingredients and plastic pellets.

Technical Parameters

Selection Guide

1. By Removal Efficiency & Working Conditions

• High-Purity Applications: Choose high-strength models for ports, power plants, and lithium battery production.
• Harsh Environments: Select fully sealed, high-temperature-resistant units for dusty, humid, or high-temperature conditions.

2. By Installation Position

• Head of Conveyor: Best for maximum efficiency as materials are in a loose state.
• Mid-Conveyor: Use with non-magnetic idlers to improve performance.

3. Multi-Stage Removal Setup


   For cascading systems, the downstream unit must have a stronger magnetic field than the upstream one to ensure effective filtration.
